ล้อทราย / Flap Wheels |
Diameter |
4", 5", 6", 8", 10",
12", 14", 16", 20" |
| |
Grit |
40 / 60 / 80 / 100
120 / 150 / 180
240 / 320 / 400 / 600 |
|
Diameter |
4" |
5" |
6" |
8" |
10" |
12" |
14" |
16" |
20" |
|
Max (RPM) |
9,500 rpm. |
6,800 rpm. |
5,800 rpm. |
4,800 rpm. |
3,800 rpm. |
3,200 rpm. |
2,860 rpm. |
2,370 rpm. |
1,880 rpm. |
|
|
|
| |
|

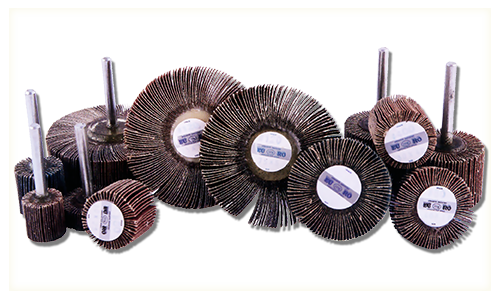

ล้อทรายมีแกน / Mounted Flap Wheels |
Diameter |
20, 25, 30, 38, 40,
45, 50, 63, 76 mm. |
| |
Grit |
40 / 60 / 80 / 100
120 / 150 / 180
240 / 320 / 400 / 600 |
|
Diameter MM. |
20 mm. |
25 mm. |
30 mm. |
38 mm. |
40 mm. |
45 mm. |
50 mm. |
63 mm. |
76 mm. |
|
Max (RPM) |
38,150 rpm. |
30,500 rpm. |
25,400 rpm. |
19,000 rpm. |
19,000 rpm. |
15,200 rpm. |
15,200 rpm. |
12,700 rpm. |
9,500 rpm. |
|
|
|
| |
|

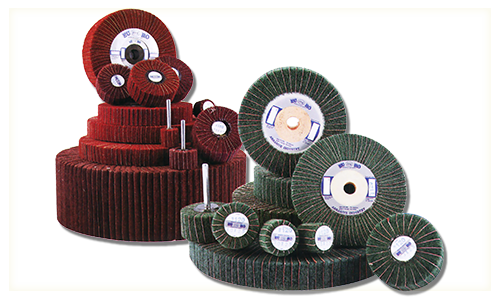

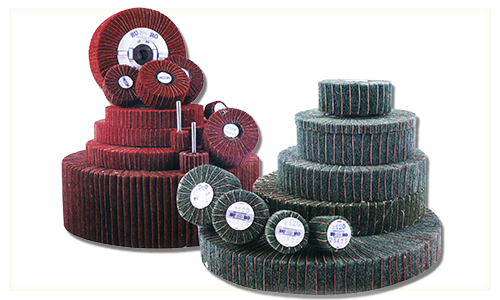

ล้อทรายผสมสก๊อตไบร้ท / Non-Woven Flap Wheels |
Diameter |
4", 5", 6", 8", 10",
12" |
| |
Grit |
40 / 60 / 80 / 100
120 / 150 / 180
240 / 320 / 400 / 600 |
|
Diameter |
4" |
5" |
6" |
8" |
10" |
12" |
|
Max (RPM) |
4,780 rpm. |
3,700 rpm. |
3,180 rpm. |
3,050 rpm. |
1,910 rpm. |
1,590 rpm. |
|
|
|
| |
|
จานอ่อน 5" / Flexible Flap Disc |
Diameter |
25, 30,40,
50, 63, 76 mm. |
| |
Grit |
40 / 60 / 80 / 100
120 / 150 / 180
240 / 320 / 400 / 600 |
|
Diameter MM. |
25 mm. |
30 mm. |
40 mm. |
50 mm. |
63 mm. |
76 mm. |
|
Max (RPM) |
30,500 rpm. |
25,400 rpm. |
19,000 rpm. |
15,200 rpm. |
12,700 rpm. |
9,500 rpm. |
|
|
|
|
